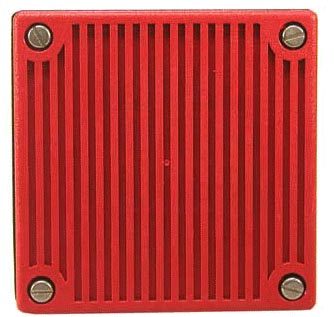

Audible Alarm
|
Model No. AH115A8R Red, AH115A8G Gray
- Loud 110+ decibels @ 5 feet
- 8 User selectable alert sounds: Horn, Bell, March Time Horn, Code-3 Horn,
Code-3 Tone, Slow Whoop, Siren and Hi/Lo tone.
- Two user selectable sound level outputs: Normal and High.
- Piezo electronic means low power requirements. Only 50mA @ 115VAC.
- UL Recognized for use on UL Type 3, 3R, 4, 4X, 12 and 13 enclosures.
- Wide ambient operating temperature range: -31°F - 150°F.
- Does not generate electrical noise due to piezo electronic sound element.
- Low profile, protrudes less than 1 inch from mounting surface.
- Self locking stainless steel hex nut makes sounder tamper proof.
- Highly reliable Solid State circuitry.
- Each screw clamp terminal will accept two #18 to #12 AWG wires each.
- PLC compatible (may require a load resistor).
- Two year warranty.
- Sound level output 110+ dBA @ 5 feet.
- Average current draw 0.05 amps max.
- Ambient operating temperature -31°F to +150°F (-32° to +66°C).
- Operating voltage: 96VAC to 132VAC © 60HZ ± 5%.
- Relative humidity 95% max.
- Standard color is textured red.
- Textured light gray available.
Note: The code-3 Horn and Tone alert are reserved for emergency evacuation signaling. They should not be used for any other purpose!
 WARNING: Do not operate this device within 15 inches of a person’s ear. Exposure to such high sound levels can result in permanent damage to a persons hearing.

Audible Alarm from Ingram Products Inc
|
|
