ILRIS-3D Intelligent Laser Ranging and Imaging System from Optech

ILRIS,3D,Intelligent,Laser,Ranging,Imaging,System,Optech Optech's ILRIS-3D Intelligent Laser Ranging and Imaging System gives you scanning ranges beyond 1,000 m.

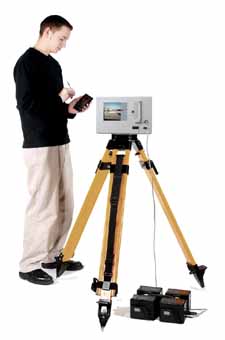

A complete laser surveying solution: accurate, eyesafe, rugged, easily portable and deployed by a single operator.

Enter the World of 3D Imaging

ILRIS-3D Benefits and Features


Benefits	Fast and accurate: Data capture rate of 2000 points/second with a modelled output accuracy in the range of 5 mm Processes large amounts of data: A single operator can capture 30 million points in 8 hours with 13 scans and 11 setups Directly digital data: Data compatible with GIS programs

Features	Resolves small features at long range Short scan time: scene with 1.2 to 1.8 million points can be fully captured in 10-15 minutes Edit out intermittent objects during data processing Easy to use, no extensive training, easy to set up No levelling required Portable and compact, deployed by a single operator Battery-operated Eyesafe under all operating conditions, even when viewed with binoculars No retro-reflectors or mirrors required

Specifications

Performance Range Data sample rate	350 m (4% target) 800 m (20% target) 2,000 points/second	Output	Metafile consisting of XYZ, active laser photograph (intensity), digital photo data, operator setup parameters and notes (from Palm PDA).
Accuracy * Target registration accuracy Modeling accuracy Depth resolution	4 mm 3 mm 3 mm	Power (Input) Power input Battery Power consumption	24 VDC battery or AC converter 24 V rechargeable 75 W (typical)
Laser Spot Size Spot size	D = 0.17R+12, where D = diameter of spot (mm) R = range to target (m) 29 mm @ 100 m	Size Scanner (L � W � H) Scanner weight	312 � 312 � 205 mm 12 kg
Minimum Spot Spacing Spot spacing	S = 0.026R, where S = spacing (mm) R = range to target (m) <2.6 mm @ 100 m	Environmental Operating temperature	0� C to +40� C (For extended range consult Optech)
Minimum Spot Spacing Spot spacing		Storage temperature Environment	-20� C to +50� C NEMA 4X rated, water and dust-proof, IP65
Operator Interface Digital camera Viewfinder Control interface	Colour 640 � 480 pixels 17 cm VGA Palm (or compatible) PDA	Eye Safety	Class I laser product IEC 60825-1, US FDA 21 CFR 1040 Eye-safe in all modes of operation
Standard Software	Data parser and reduction software	Standard Accessories	Palmtop computer ATA flash memory card Batteries and charger Carry case
Recommended Software	Palm OS control software Point cloud alignment, inspection and visualization software; Polyworks� software from InnovMetric	Optional Accessories	Extra flash cards Extra batteries AC adapter Solar power unit Charger accessories
* 1 Sigma. For further details on specifications and the test conditions, consult Optech.		All information is subject to change without notice.
