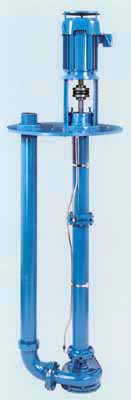

Veteran Vertical Sump and Process Pump Model 3171

The Veteran vertical sump and process pump. Thousands of installations industrial process, sump drainage, corrosive liquids, pollution control, molten salts attest to the 3171's remarkable performance. Simple mounting.

Specifications

  • Capacities to 3180 GPM (722 m3/h)
  • Heads to 310 Feet (95 m)
  • Temperatures to 450° F (232° C)
  • Pit Depths to 20 Feet (6 m)

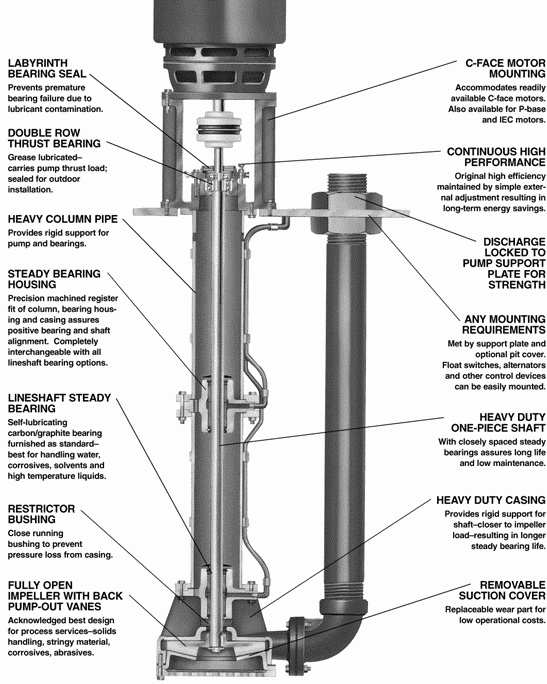

Design Features

  • Self-Priming
  • Rugged Double Row Thrust Bearing
  • Heavy Duty One-piece Shaft
  • External Impeller Adjustment
  • Available in a Wide Range of Alloys
  • Open Impeller Design
  • Sealing Flexibility: Choice of packing, mechanical or fluid sealing methods to seal sump vapors

Services

  • Industrial Process
  • Industrial Sump Wastes
  • Molten Sulfur
  • Tank Unloading
  • Corrosive and Non-Corrosive Liquids
