| Bridge
(Strain Gauge) Input Alarms Bridge (Strain Gauge) Input Transmitters |
Hot-Swappable Plug-In Design Looptracker® LEDs Push to Test Lifetime Warranty | ||||
| Model | Input | Output Ranges | Features | Data & Applications | Photo |
|
API 1500 G Bridge Input Single Alarm Trip Specify Input, Excitation Voltage, Alarm Type & Power API 1520 G Bridge Input Dual Alarm Trip Specify Input, Excitation Voltage, Alarm Type & Power | Factory
Configured Minimum: 5mVDC Maximum: 1200mVDC | 1 or 2
Field Adjustable 7A SPDT Alarm Relays | Looptracker®
LEDs for Input Alarm Status LEDs Internal Bridge Excitation Source Push to Test/Reset Uses 11-Pin Socket |
Data
Sheet |
|
|
API 4051 G Bridge to DC Transmitter Specify Input, Excitation Voltage, Output & Power | Factory
Configured Others Available 1mV/V 2mV/V 3mV/V 5mV/V 10mV/V 20mV/V 50mV/V 100mV/V 200mV/V | Factory
Configured Others available 0-1V 0-5V 1-5V 0-10V ±5V ±10V 0-20mA 4-20mA | Looptracker®
LEDs for Input and Output Internal Bridge Excitation Source Push to Test Uses 11-Pin Socket | Data
Sheet Applications Pressure System Calibration Pressure Transducer Calibration Reference Info Troubleshooting Strain Gauge Type Sensors |
|
|
API 4058 G
Field Selectable Bridge to DC Transmitter Specify Power | Field
Settable 0-5mVDC to 0-1200mVDC Field Settable Excitation Voltage 0-10VDC in 1VDC Steps | 18 Field
Settable 0-1V to ±10V 0-2mA to 0-20mA 4-20mA | Minuteman
Setup Looptracker® LEDs for Input and Output Internal Bridge Excitation Source Drive up to 4 bridges Push to Test Uses 11-Pin Socket | Data
Sheet Help Sheet Range Settings Applications Chemical Plant Reference Info Troubleshooting Strain Gauge Type Sensors |
|
|
API 4059 G
Field Selectable Isolated Bridge to DC Transmitter Specify Power | Field
Settable 0-5mVDC to 0-400mVDC Field Settable Excitation Voltage 0-10VDC in 1VDC Steps | 18 Field
Settable 0-1V to ±10V 0-2mA to 0-20mA 4-20mA | Minuteman
Setup Looptracker® LEDs for Input and Output Full Isolation Internal Bridge Excitation Source Drive up to 4 bridges Push to Test Uses 11-Pin Socket | Data
Sheet Range Settings Help Sheet Applications Platform Scale Truck Scale Dispensing System Automation 6-Wire Strain Gauges Pressure Sensor vs Pressure Transmitter Reference Info Troubleshooting Strain Gauge Type Sensors |  Socket Sold Separately
|
|
API SUM-000 Field Settable Bridge Summing Assembly Board
API SUM-025
API SUM-xxx | Up to Four
350 Ω or greater Bridges, Strain Gauges or Load Cells Switch for Internal or External Excitation Voltage | Socket for API4059 G or API4058 G4 | Connect
up to 4 Bridges Individual Excitation & Trim for each Strain Gauge Optional Enclosures | Data
Sheet Applications Platform Scale Truck Scale Dispensing System Automation Reference Info Troubleshooting Strain Gauge Type Sensors |
|
|

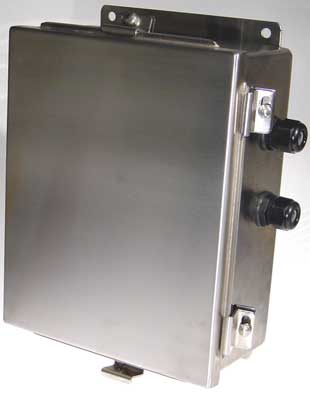

API 316 Stainless Housing for Summing Assembly
Bridge Summing Assembly | Up to Four
350 Ω or greater Bridges, Strain Gauges or Load Cells Switch for Internal or External Excitation Voltage | Socket
for API4059 G or API4058 G4 | 316 stainless steel enclosure protects sum board and module. Water resistant feedthroughs for wiring. |
|
|
|
Tel:
1-800-794-5883
|
Email: sales@mod-tronic.com
|
Fax:
1-800-830-7122
|
 |
Bridge
(Strain Gauge) Input Alarms & Transmitters
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
