What
Is The Ion Air Jet?
This
mountable version of our Ion Air Gun (without blowgun) delivers
a concentrated airflow that can cover a precise spot without
disturbing other areas. It provides incredibly fast static
decay rates and cleaning ability. The Ion Air Jet is the ideal
way to remove static and dust from small parts prior to shrink
wrapping, packaging, printing, painting or finishing.
The
Ion Air Jet induces surrounding airflow at a ratio of 5:1,
minimizing compressed air use and maximizing ionized airflow.
Force can be adjusted from a "blast" to a "breeze".
The compact size makes it ideal for mounting in confined or
tight spaces.
| Applications |
Advantages |
|
3-D Parts |
|
Low cost |
|
|
Bottle cleaning |
|
Rapid static decay |
|
|
Printer surfaces |
|
Shockless,
non-radioactive |
|
|
Part cleaning |
|
Quiet, compact |

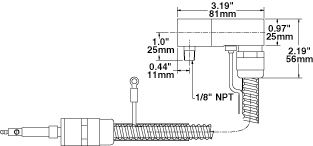

Dimensions
Performance
Pressure
Supply |
Air
Consumption
|
Sound
Level |
Dissipates
5kV* |
| PSIG |
BAR |
SCFM |
SLPM |
dBA |
SECONDS |
| 20 |
1.4 |
4.8 |
136 |
67 |
0.45 |
| 40 |
2.8 |
7.5 |
212 |
74 |
0.33 |
| 60 |
4.1 |
10.3 |
291 |
79 |
0.24 |
| 80 |
5.5 |
13.0 |
368 |
82 |
0.18 |
| 100 |
6.9 |
15.7 |
444 |
85 |
0.18 |
|
*
6" (15.3cm) from target
|
Specifications
EXAIR
Model 7901 or 7907 Power Supply (5 kV) is required for operation.
Power supplies are equipped with a 6' (1.83m) power cord,
lighted power switch and (2) high voltage outlets.
Compressed
Air:
1/8" NPT inlet provided
Electrical:
For use with 5
kVrms, 5 milliamperes (max.) power supply, Model 7901 (115V)
or 7907 (230V). Power Supplies are UL Listed to U.S. and Canadian
safety standards.
Electrical
Hazard:
Shockless (less than 40 microamperes short circuited).
Do not
use near flammable materials or gases!
Materials
of Construction:
Metal Parts: Brass and Stainless Steel
Plastic Parts: UL rated 94 HB
Emitter: Stainless Steel
